Softball Field Dimensions

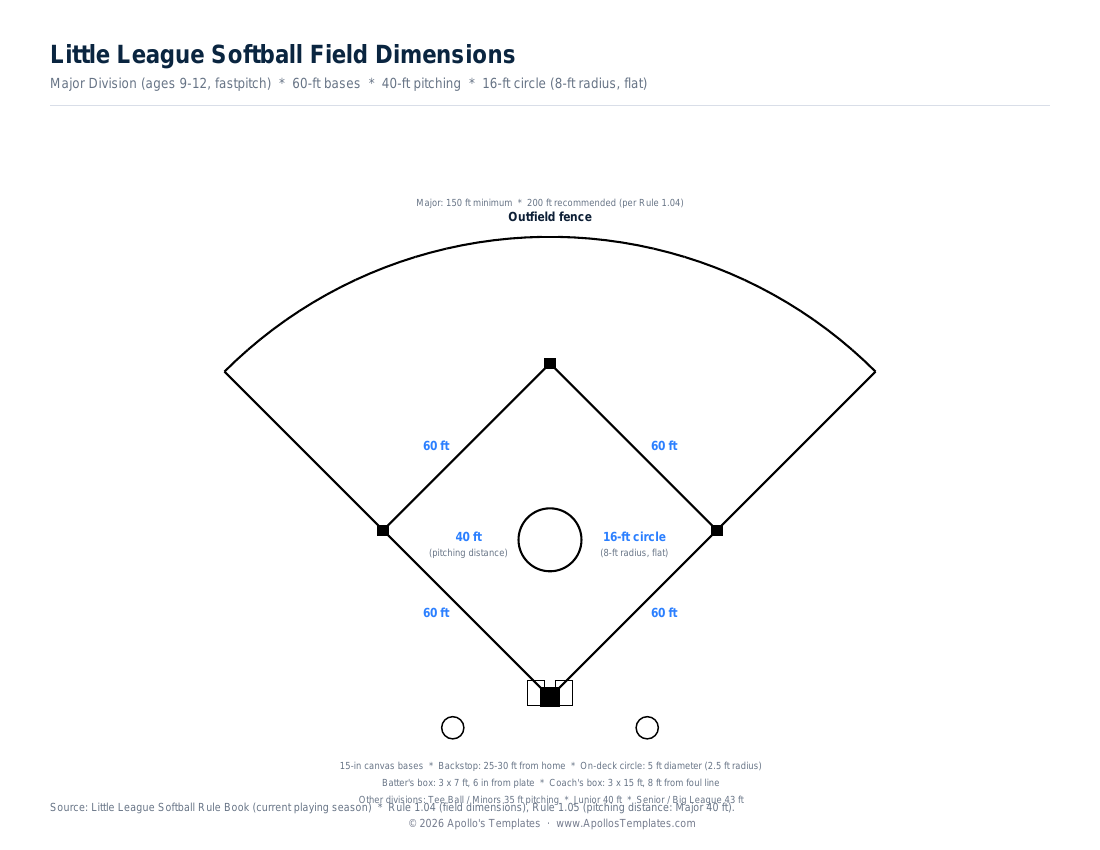

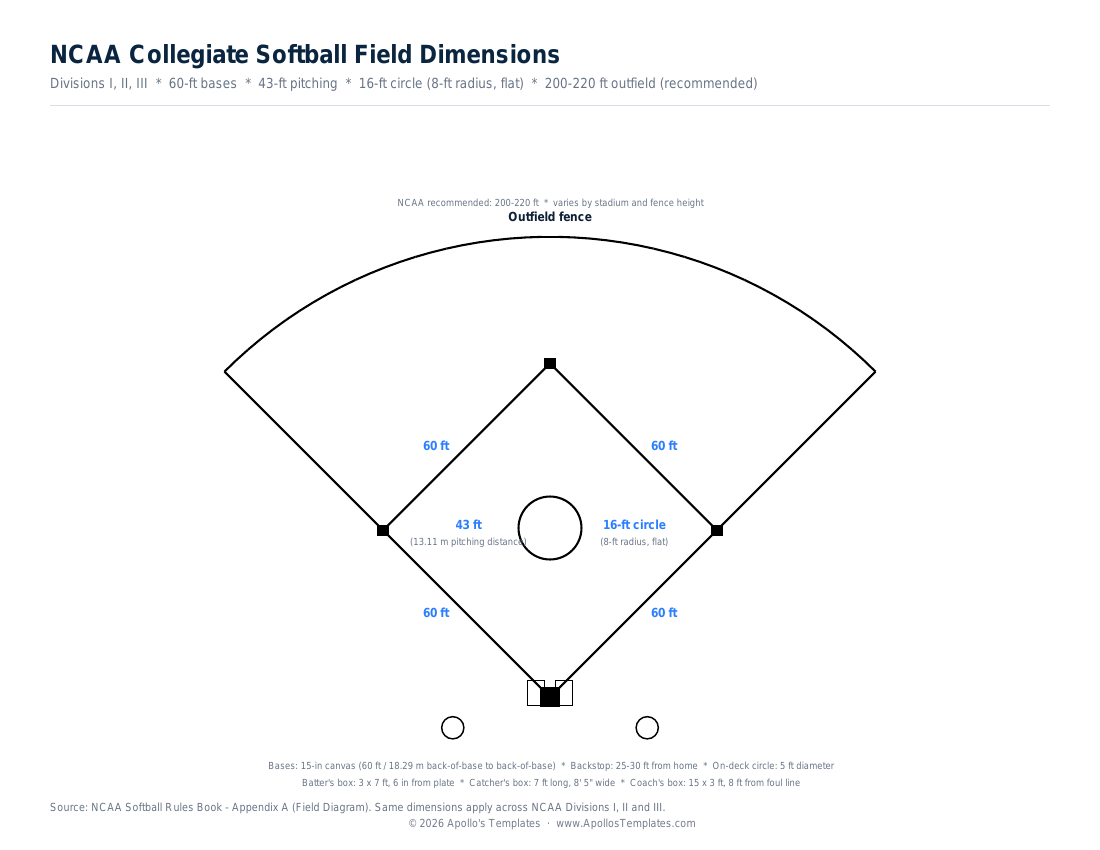

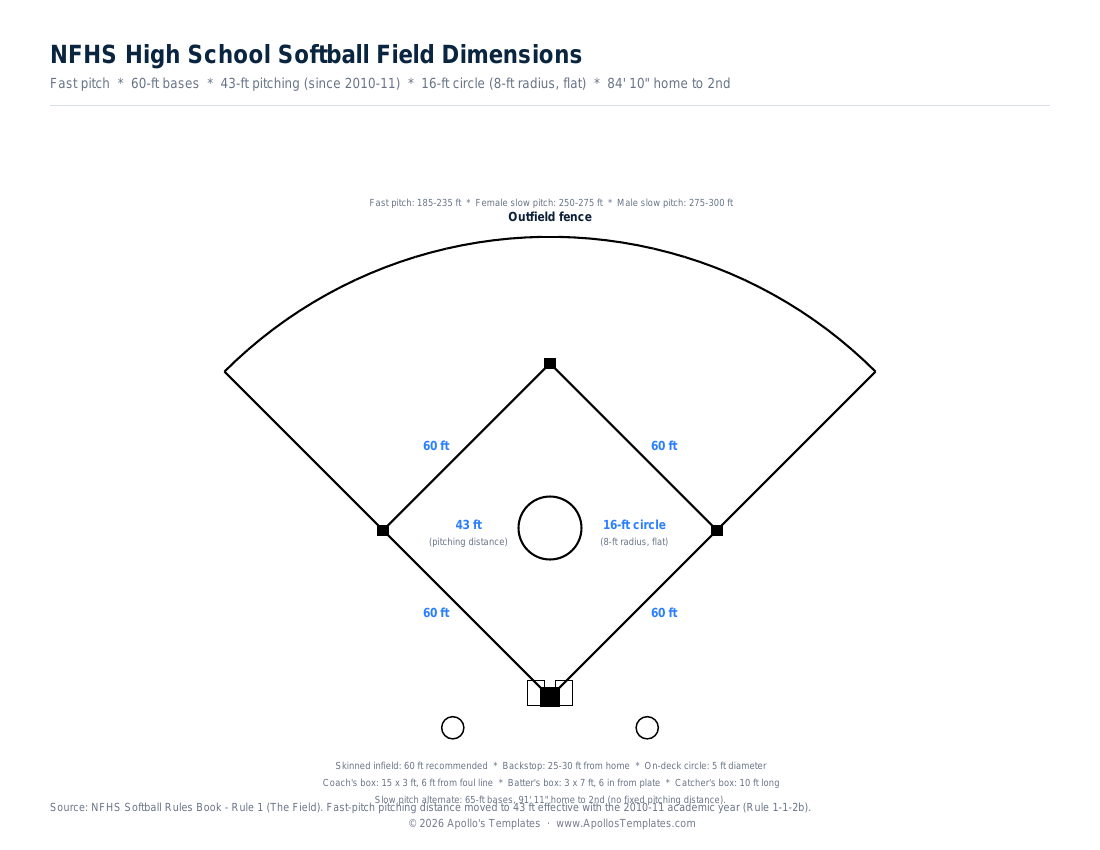

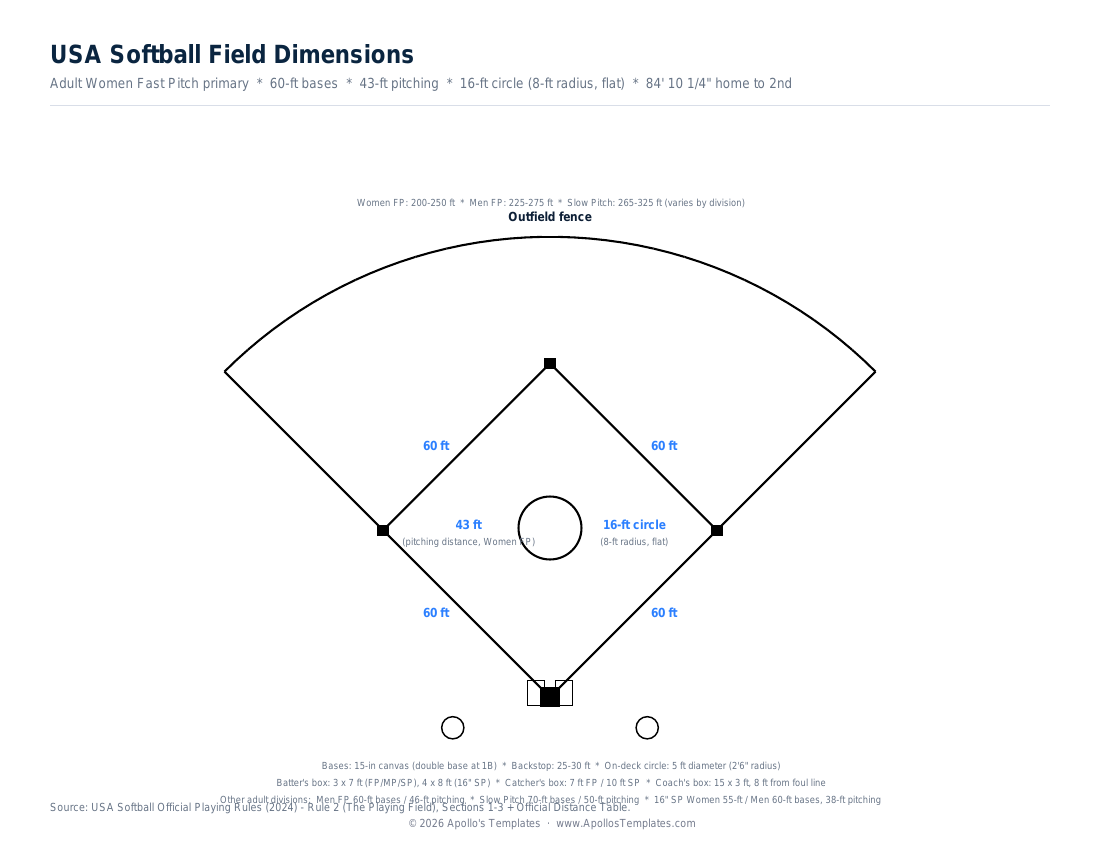

Annotated dimension posters for every major softball governing body — Little League Major (40-ft pitching), NFHS High School (43-ft fastpitch since 2010-11), NCAA Collegiate (43-ft, 200-220 ft outfield), and USA Softball (43-ft Women FP / 46-ft Men FP). All sheets share 60-ft base paths and the 16-ft pitcher's circle (no mound, flat).
Print-and-pin softball field dimensions.
One annotated PDF per governing body, drawn at scale with every regulation measurement labeled directly on the diagram. Sources: Little League Softball Rule Book, NFHS Softball Rules Book Rule 1, NCAA Softball Rules Book Appendix A, and USA Softball Official Playing Rules (2024) Rule 2.
Marking & FAQ — Softball Fields
Fastpitch softball uses 60-ft base paths at every level — Little League, high school (NFHS), NCAA, and USA Softball. The pitching distance is 43 ft for women's fastpitch (NFHS, NCAA, USA Softball) and 40 ft for Little League; men's fastpitch pitches from 46 ft.
Unlike baseball, there is no raised mound. The pitcher works from a flat 16-ft-diameter circle (8-ft radius). Slow-pitch is a different game on a bigger diamond — typically 65-ft bases and a 50-ft pitching distance.
How to lay out a softball field
Same point-down-square method as baseball, just at 60-ft base paths with a flat pitching circle instead of a mound.
You'll need: 150-ft tape measure · Shorter tapes · Chalk or marking paint · Bases and a pitching rubber
- Set home plate. Place the back point of home plate; everything is measured from here.
- Run the 60-ft base lines. Stretch lines from home through first and third, 60 ft each. Softball uses 60-ft base paths at every fastpitch level.
- Locate second base. Home to second base is 84 ft 10¼ in. on a 60-ft diamond. Second is where the 60-ft swings from first and third meet on the line out from home.
- Mark the pitching circle. Measure the pitching distance along the home-to-second line: 43 ft (NFHS / NCAA / USA Softball women's fastpitch) or 40 ft (Little League). Draw a flat 16-ft-diameter circle (8-ft radius) centered on the rubber.
- Add the batter's and on-deck circles. Batter's boxes flank home plate; on-deck circles sit in foul territory. There is no raised mound — the circle stays level with the infield.
Frequently asked questions
How far is the softball pitching distance?
43 ft for women's fastpitch (NFHS high school, NCAA, and USA Softball). Little League softball pitches from 40 ft; men's fastpitch from 46 ft.
Are softball bases 60 feet apart?
Yes — 60-ft base paths at every fastpitch level, from Little League through NCAA and USA Softball.
Is there a pitching mound in softball?
No. Softball pitchers work from a flat 16-ft-diameter circle (8-ft radius). There is no raised mound at any level.
What's the distance from home to second base in softball?
84 ft 10¼ in. on a 60-ft diamond.
How is a slow-pitch field different?
Slow-pitch typically uses larger 65-ft base paths and a 50-ft pitching distance, versus 60 ft / 43 ft for fastpitch.
Dimensions verified against current governing-body rule books. Updated through May 2026.
