Tennis Court Dimensions

Every regulation measurement printed straight onto the diagram — 78 × 36 ft for doubles, 27 ft for singles, service lines 21 ft from the net, and net heights at the post and centre. Plus the two junior courts: 60 ft Orange and 36 ft Red.

Measured · print and pin up

Four sheets, three court sizes.

The full court in both orientations, plus the two ITF/USTA junior courts. Every sheet carries its own measurements, so you never have to cross-reference a second page.

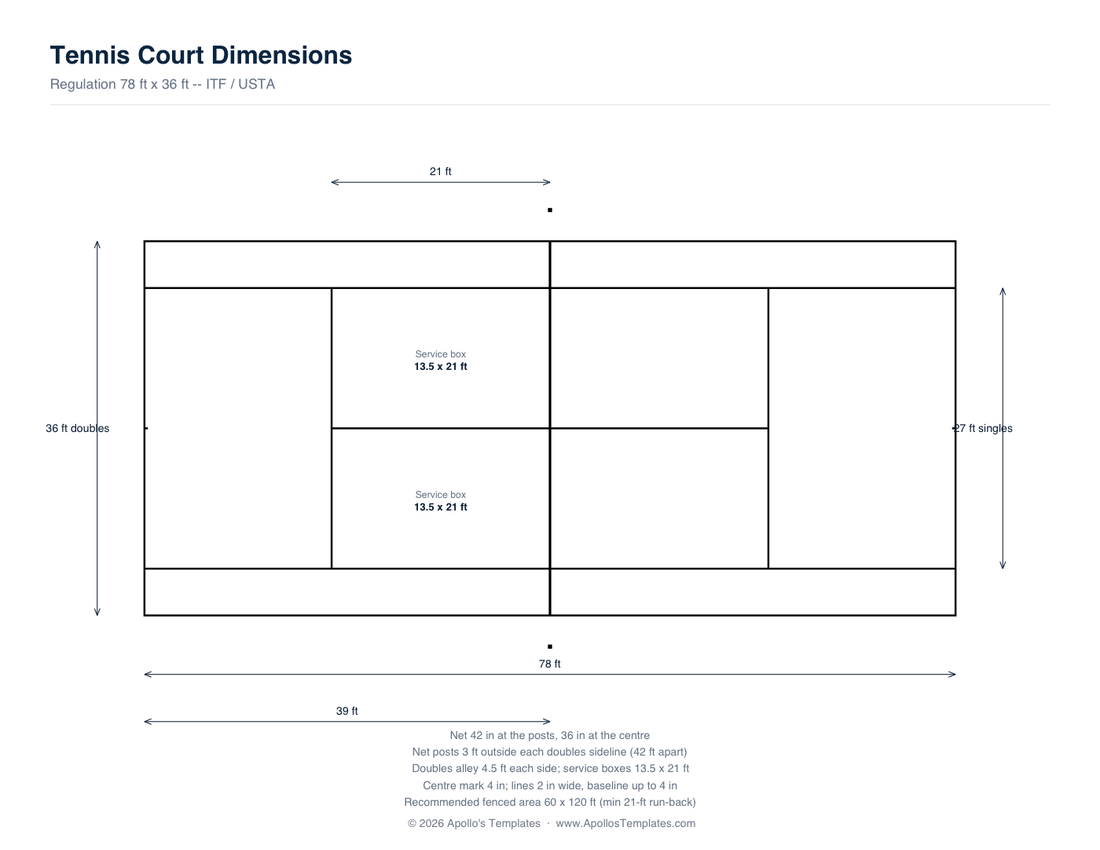

Measured tennis court diagram drawn wide, labeled 78 ft long and 36 ft wide for doubles with 27 ft singles width, 21-ft service lines and 13.5 by 21 ft service boxes
NewPDF

Full Court — Landscape

The regulation court with every measurement on the page: 78 × 36 ft doubles, 27 ft singles, 4.5-ft alleys, service lines 21 ft from the net, and net heights at post and centre. Wide layout for a wall or a facility binder.
Download PDF

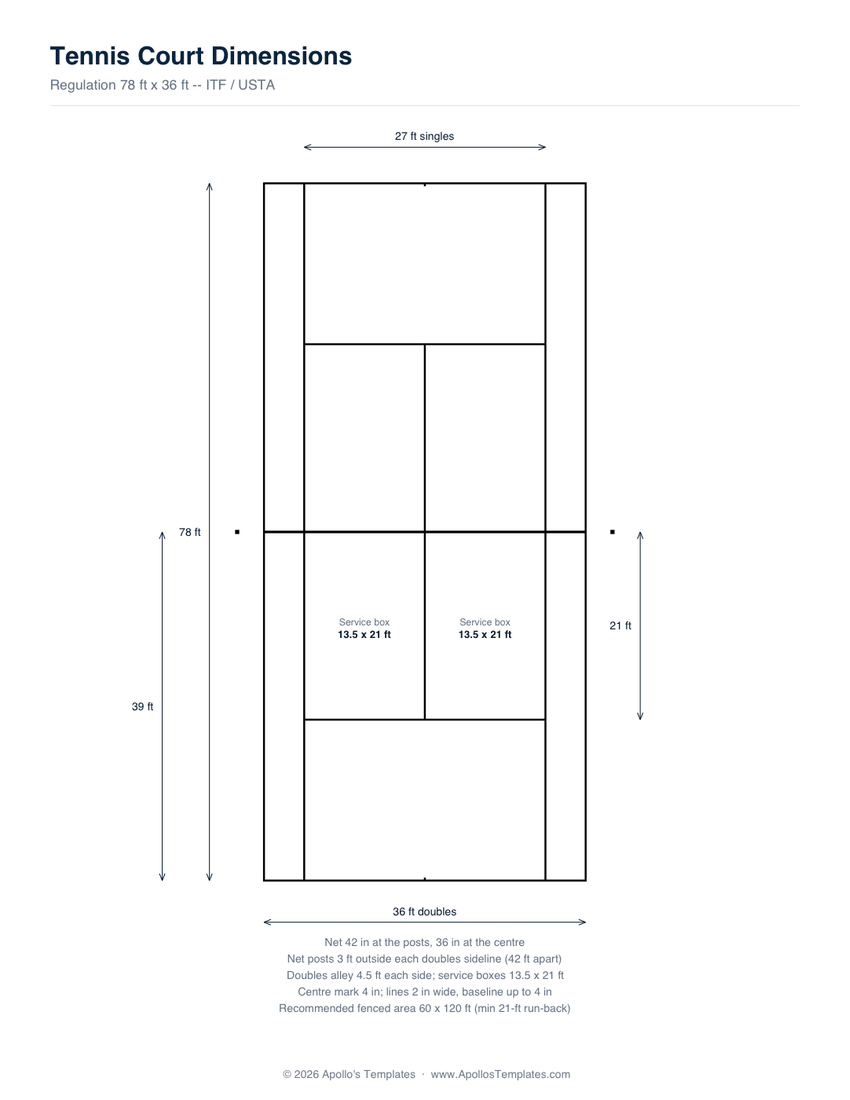

Measured tennis court diagram in portrait orientation labeled 78 ft by 36 ft with the 39-ft net-to-baseline distance and 21-ft service line marked
PDF

Full Court — Portrait

Same regulation measurements in the upright view — the shape that fits a clipboard, a binder sleeve or a letter-size frame beside the court.
Download PDF

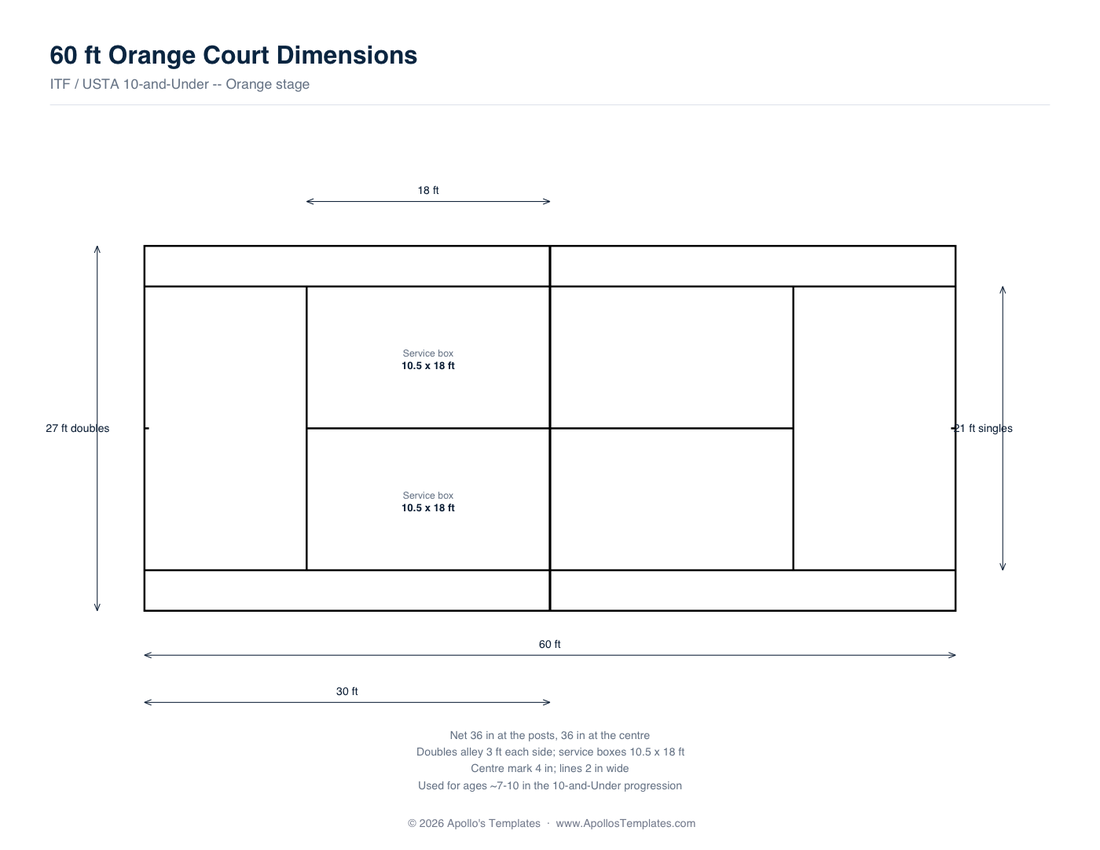

Measured 60-foot Orange junior tennis court diagram labeled 60 ft long by 27 ft wide with 18-ft service lines and a 36-inch net
PDF

60 ft — Orange (10U)

The Orange stage court from the ITF/USTA 10-and-Under progression — 60 × 27 ft with an 18-ft service line and a 36-inch net. Used for roughly ages 7 to 10.
Download PDF

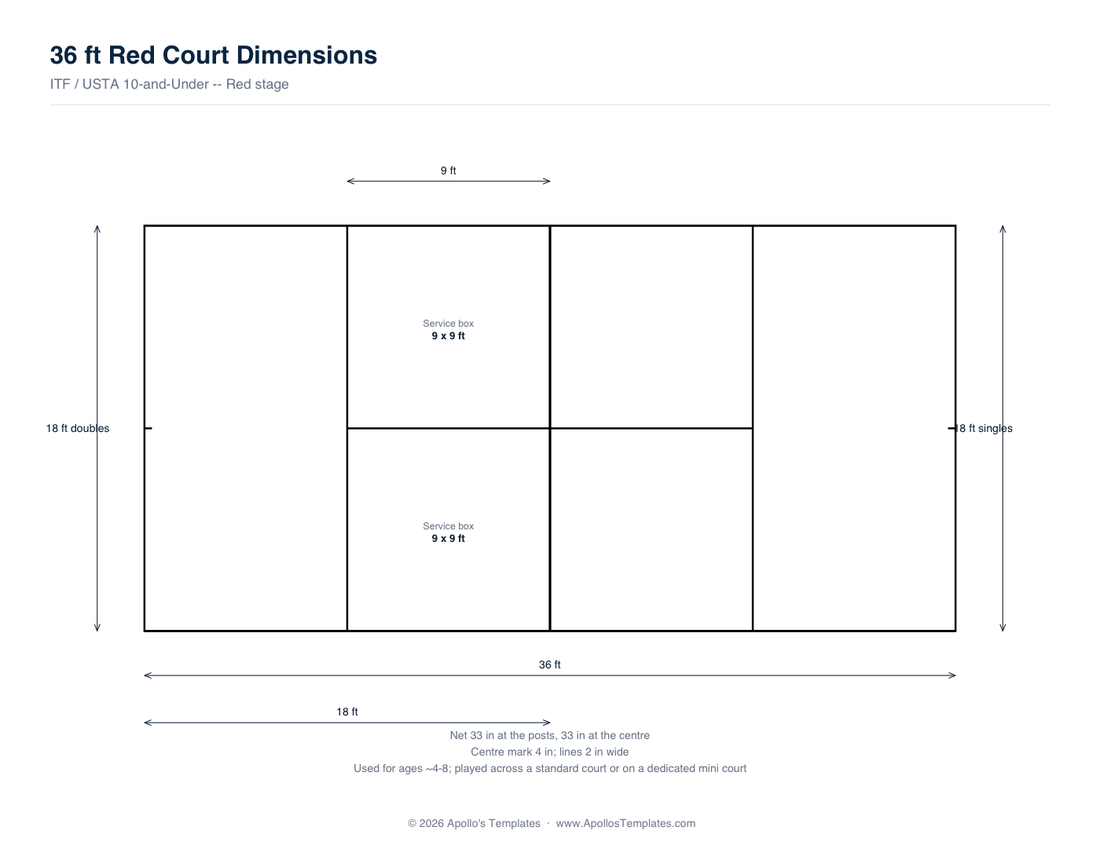

Measured 36-foot Red junior tennis court diagram labeled 36 ft long by 18 ft wide with 9-ft service boxes and a 33-inch net
PDF

36 ft — Red (8U)

The Red stage mini court — 36 × 18 ft with a 33-inch net. Small enough to fit sideways across a full court, which is how most clubs run red-ball sessions.
Download PDF

The numbers that actually matter

Almost every tennis court question comes down to three numbers. The court is 78 feet long, full stop — singles and doubles play on the same length. The width changes: 36 feet for doubles, 27 feet for singles, with the 4½-foot alleys making up the difference. And the service line sits 21 feet from the net, which fixes the size of all four service boxes at 13½ × 21 feet.

The number people forget is the space around the court. A court that measures correctly but sits four feet from a fence is unplayable. Allow roughly 21 feet of run-back behind each baseline and about 12 feet at the sides — which is how a 78 × 36 ft court becomes a 60 × 120 ft fenced footprint.

Coaching, not measuring?
Blank tennis court diagrams
Clean courts to draw drills on — or build a custom one with your club logo and the deuce, ad and alley labels.
Open
Converting a court?
Pickleball court dimensions
20 × 44 ft with the kitchen marked — about a quarter of a tennis court, which is why four fit on one.
Open
What are the dimensions of a tennis court?
A regulation tennis court is 78 feet long. It is 36 feet wide for doubles and 27 feet wide for singles — the difference is the two 4.5-foot doubles alleys down each side. The service lines sit 21 feet from the net on each side, making four service boxes of 13.5 × 21 feet. From net to baseline is 39 feet. In metric that is 23.77 m long by 10.97 m (doubles) or 8.23 m (singles) wide.
How high is a tennis net?
3 feet 6 inches (42 inches) at the posts and 3 feet (36 inches) at the centre, where it is held down by the centre strap. The posts stand 3 feet outside each doubles sideline, which puts their centres 42 feet apart. Those measurements are printed on the full-court sheets.
What are the junior 60 ft and 36 ft tennis court dimensions?
The ITF and USTA 10-and-Under progression uses two smaller courts. The Orange court is 60 × 27 feet (21 feet wide for singles) with the service line 18 feet from a 36-inch net, for roughly ages 7 to 10. The Red court is 36 × 18 feet with a 33-inch net, for roughly ages 4 to 8, and is usually set up sideways across a full court. Both have their own measured sheet above.
How much space do you need to build a tennis court?
More than the court itself. The playing surface is 78 × 36 feet, but you need run-back behind each baseline and room at the sides. The common recommendation for a single fenced court is about 60 × 120 feet, with a minimum of roughly 21 feet of run-back behind each baseline. If you are planning a backyard court, measure the total fenced footprint rather than the lines.
How does a tennis court compare to a pickleball court?
A pickleball court is 20 × 44 feet, roughly a quarter the area of a 36 × 78 ft tennis court. That size difference is why one tennis court commonly converts into four pickleball courts, and why blended pickleball lines are often taped onto an existing tennis surface.
Are these tennis court dimensions free to download?
Yes — every sheet here is a free printable PDF with no signup and no watermark. They print on plain letter paper at Actual Size, and the measurements are drawn from the ITF Rules of Tennis and the USTA 10-and-Under specifications.

Measurements from the ITF Rules of Tennis and the ITF/USTA 10-and-Under specifications. Updated through September 2026.
