Football Field Dimensions

Every football field is 120 × 53⅓ yards — 360 × 160 feet. What differs between the NFL, college and high school is what's painted inside it: where the hash marks fall, how wide the goal posts are, where the numbers sit. One measured sheet per level, plus 8-man, Canadian and both flag-football fields.

11-player · one sheet per rule book

NFL, college and high school.

Same 360 × 160 ft outline on all three. The hash marks are the number that actually changes — 18 ft 6 in, 40 ft, 53 ft 4 in — and each sheet draws its own.

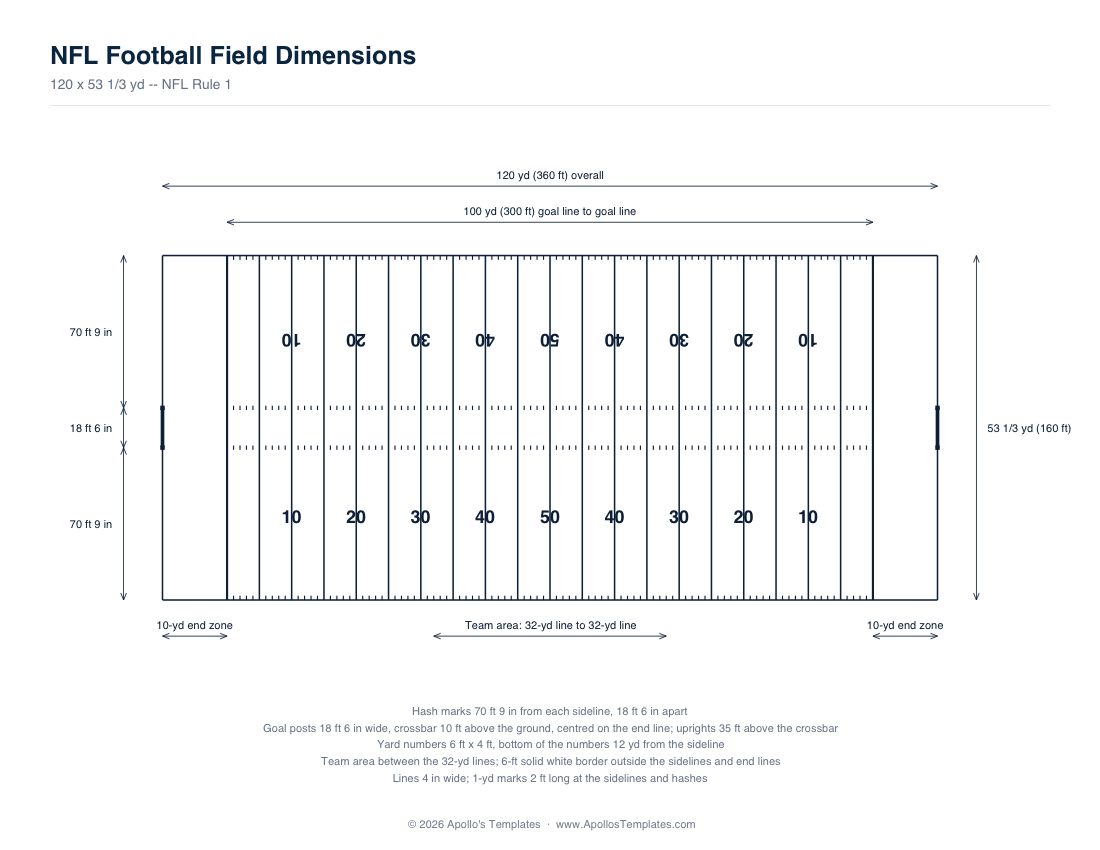

Measured NFL football field diagram labeled 120 yd by 53 1/3 yd, hash marks 70 ft 9 in from each sideline and 18 ft 6 in apart, team area between the 32-yard lines
NewPDF

NFL Field

The 360 × 160 ft field with the NFL's tight 18 ft 6 in hash marks, yard numbers 12 yd off the sideline, 18 ft 6 in goal posts on the end line and the team area between the 32s.
Download PDF

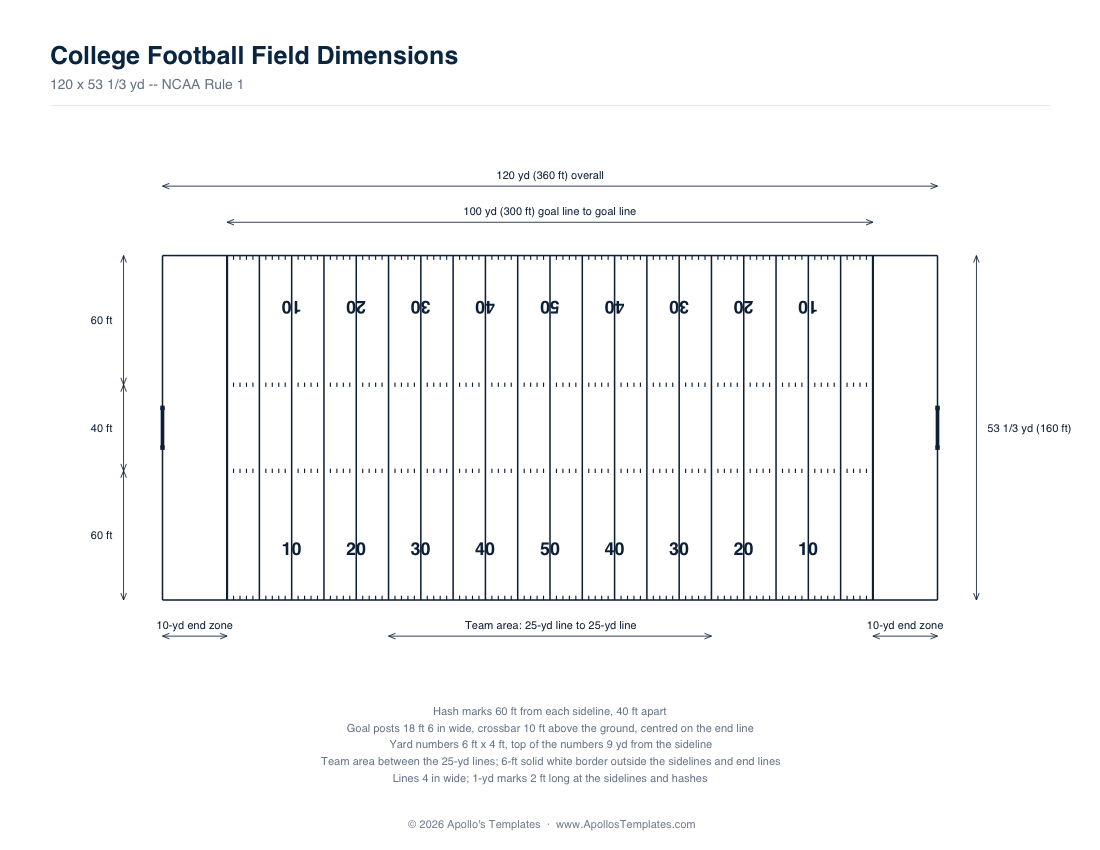

Measured college football field diagram labeled 120 by 53 1/3 yd with NCAA hash marks 60 ft from each sideline and 40 ft apart, team area between the 25-yard lines
PDF

College (NCAA) Field

Same outline, college furniture: hash marks 40 ft apart (60 ft in from each sideline), numbers with their top 9 yd from the sideline, 18 ft 6 in posts, team area between the 25s.
Download PDF

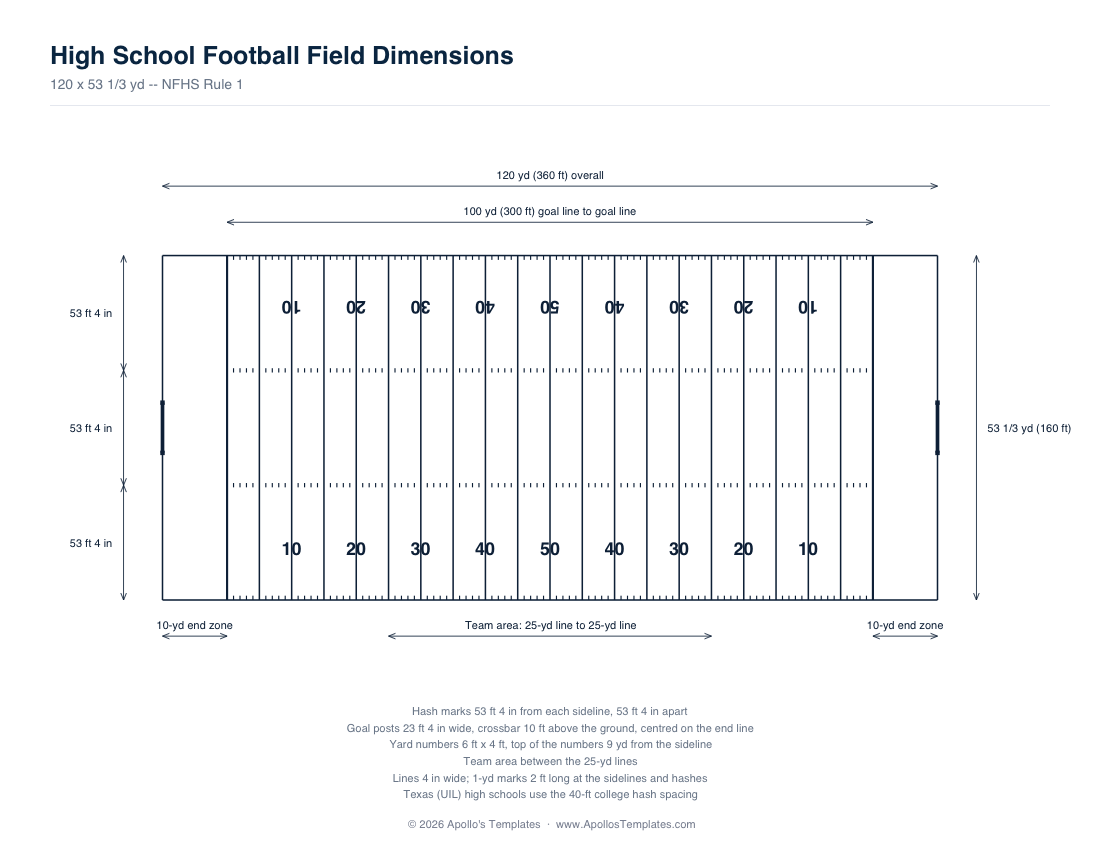

Measured high school football field diagram labeled 120 by 53 1/3 yd with NFHS hash marks dividing the width into thirds, 53 ft 4 in apart, and 23 ft 4 in goal posts
PDF

High School (NFHS) Field

Hash marks split the width into thirds — 53 ft 4 in apart — and the goal posts widen to 23 ft 4 in. Numbers 9 yd off the sideline, team area between the 25s. Texas uses college hashes.
Download PDF

NFL vs. college vs. high school

If you only remember one row, make it the hash marks. They decide where the ball is spotted after a play near the sideline, which is why the college and pro games feel different in the middle of the field.

MeasurementNFLCollege (NCAA)High school (NFHS)
Field size120 × 53⅓ yd120 × 53⅓ yd120 × 53⅓ yd
Hash marks apart18 ft 6 in40 ft53 ft 4 in
Hash marks from sideline70 ft 9 in60 ft53 ft 4 in
Goal-post width18 ft 6 in18 ft 6 in23 ft 4 in
Yard numbers (6 × 4 ft)Bottom 12 yd from sidelineTop 9 yd from sidelineTop 9 yd from sideline
Team areaBetween the 32sBetween the 25sBetween the 25s

Crossbar 10 ft at every level; end zones 10 yd deep; lines 4 in wide. Texas (UIL) high schools use the college hash spacing.

Other fields · smaller, wider, longer

8-man, Canadian and flag.

The fields people ask about that aren't a standard 11-player gridiron — each on its own measured sheet, with the governing body named on it.

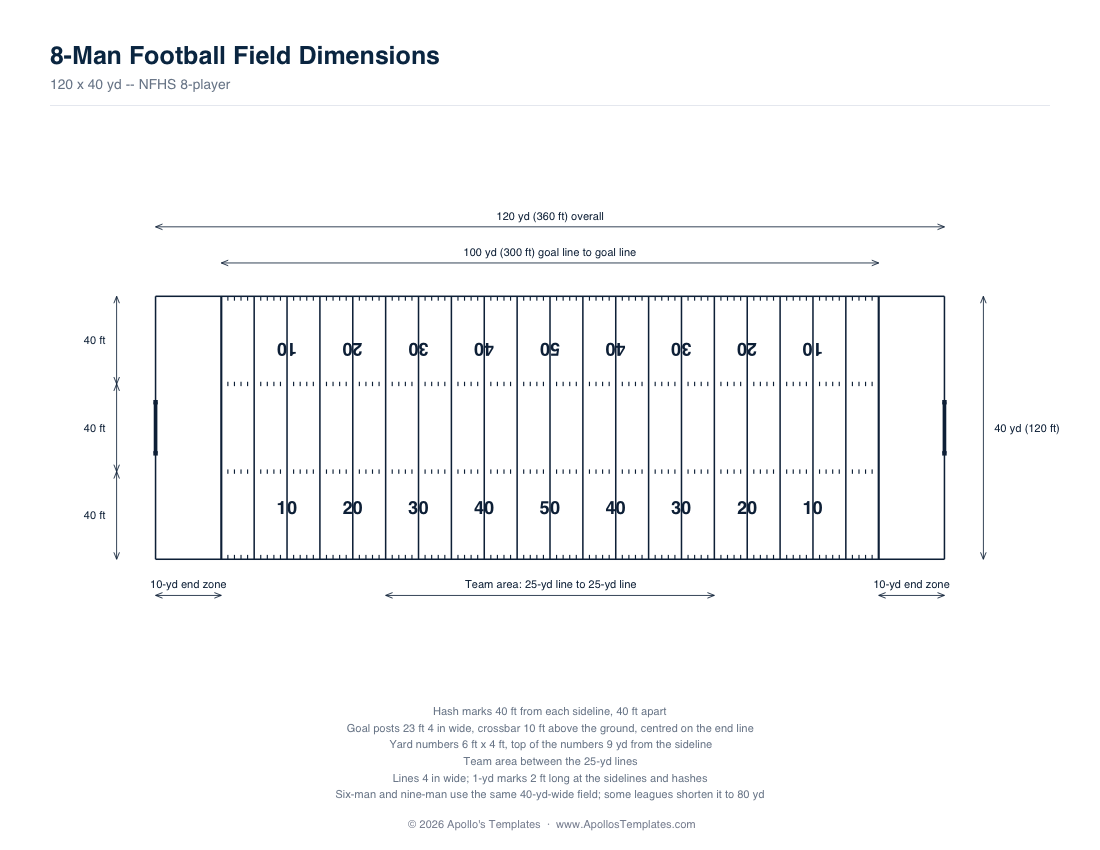

Measured 8-man football field diagram labeled 120 yd long by 40 yd wide with hash marks 40 ft from each sideline and 10-yd end zones
PDF

8-Man Field

NFHS 8-player: full 100 yd between the goal lines but only 40 yd (120 ft) wide, hashes 40 ft apart. Six-man and nine-man share the width; some leagues shorten it to 80 yd.
Download PDF

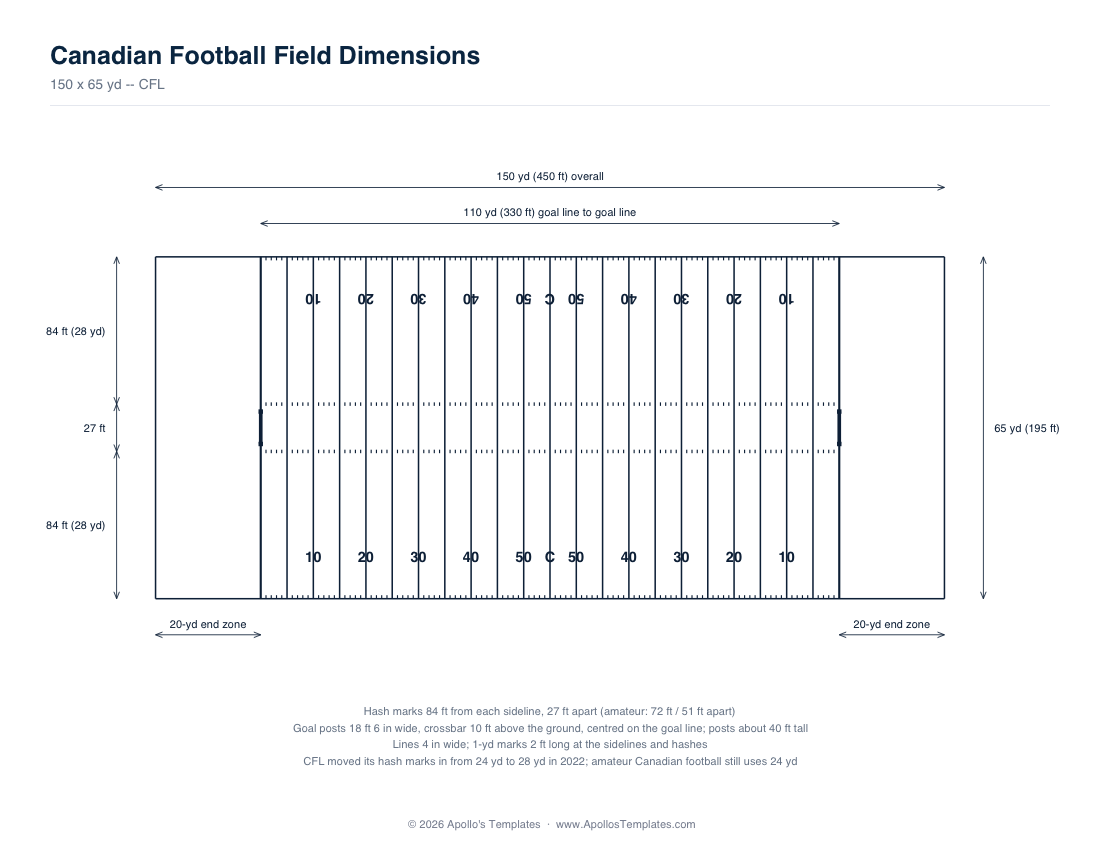

Measured Canadian football field diagram labeled 150 yd by 65 yd with 20-yd end zones, the centre line marked C at the 55, and goal posts on the goal line
PDF

Canadian (CFL) Field

110 yd between the goal lines, 65 yd wide, 20-yd end zones and the posts standing on the goal line. Hash marks 28 yd in since the 2022 change (amateur play still uses 24 yd).
Download PDF

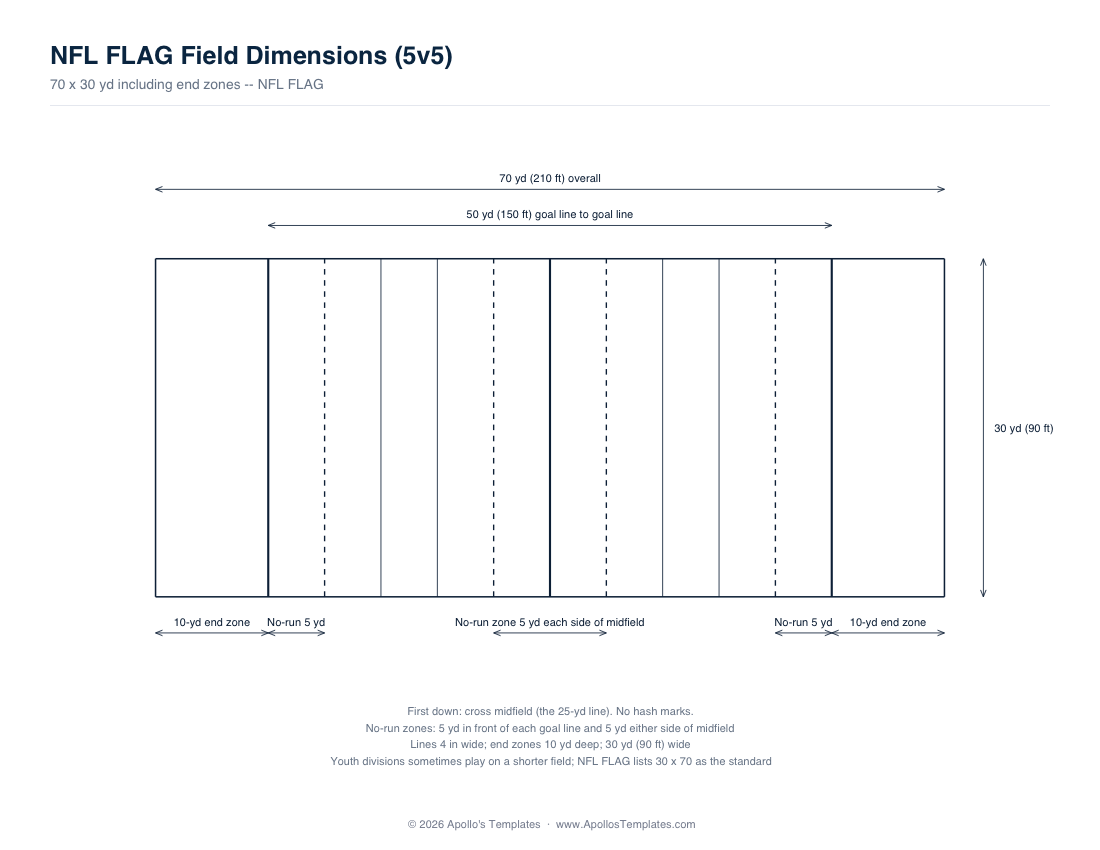

Measured NFL FLAG 5v5 field diagram labeled 70 yd by 30 yd including 10-yd end zones, with dashed no-run zones 5 yd from each goal line and either side of midfield
PDF

NFL FLAG 5v5 Field

30 × 70 yd including the two 10-yd end zones, so 50 yd of playing field. The dashed lines are the no-run zones — 5 yd in front of each goal line and 5 yd either side of midfield.
Download PDF

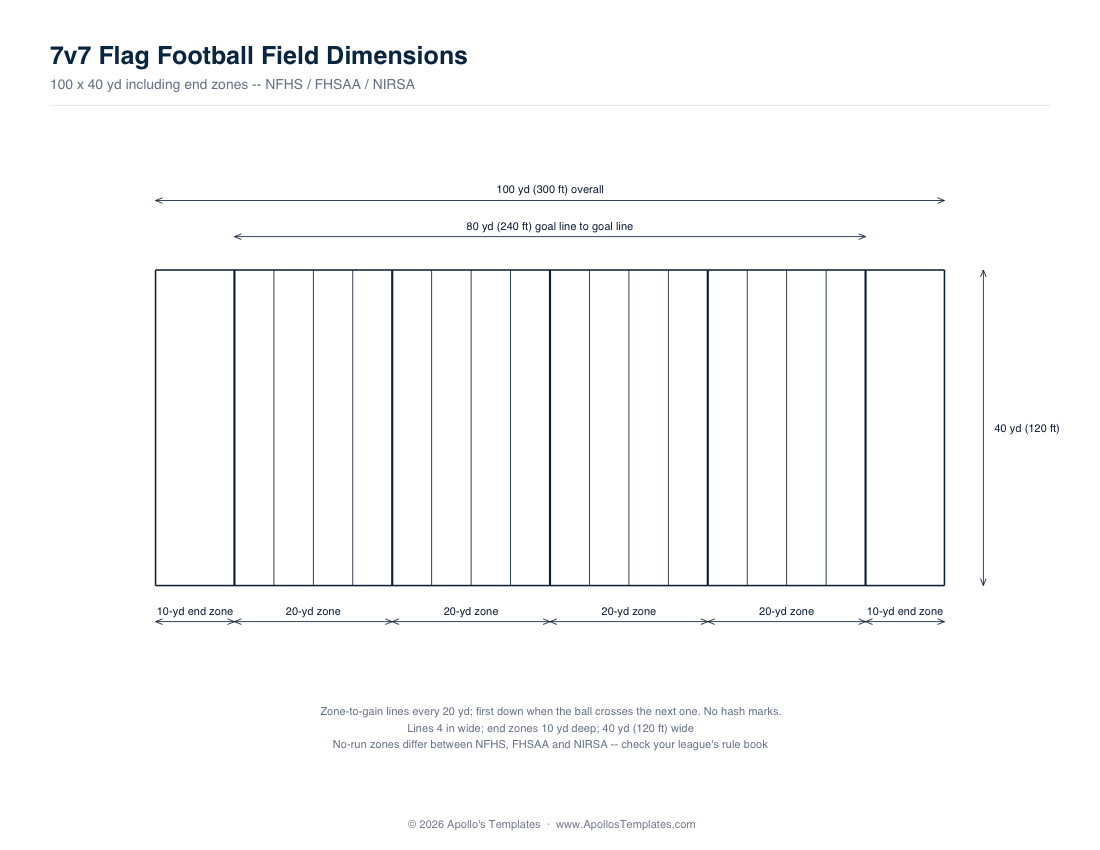

Measured 7v7 flag football field diagram labeled 100 yd by 40 yd including 10-yd end zones, with zone-to-gain lines every 20 yd
PDF

7v7 Flag Field (NFHS / FHSAA / NIRSA)

The girls' high-school and college-rec field: 80 yd between the goal lines, 40 yd wide, 10-yd end zones, and a zone line every 20 yd that resets the downs.
Download PDF

Reading a football field

Start with the two goal lines, 100 yards apart, and the 10-yard end zone behind each. Every 5 yards a line crosses the full width; every single yard a 2-ft mark sits just inside each sideline and again at the two hash lines. The numbers — 6 ft tall, 4 ft wide — run every 10 yards, and each row is painted to read upright from its own sideline, which is why one row is upside down from the air.

The hash marks are the piece worth understanding. When a play ends outside them, the ball comes back in to the nearest hash for the next snap. The narrower the hashes, the closer to the middle every play starts — which is the whole reason the NFL squeezed its own to the width of the goal posts in 1972, and why a college quarterback sees so much more “wide side” of the field.

Drawing plays, not lining a field?
Blank football field diagrams
Full field and half-field play sheets — or build one with your team logo, your hash marks and the X’s and O’s labeled.
Open
For the team, after the game
Football card templates
Printable trading cards with each player’s photo, number and position — a season keepsake.
Open
What are the dimensions of a football field?
An American football field is 120 yards long by 53⅓ yards wide — 360 by 160 feet — including the two 10-yard end zones. Between the goal lines it is 100 yards (300 feet). In metric that is 109.7 m by 48.8 m, and the whole field covers 57,600 square feet, a little over 1.3 acres. Those numbers are the same in the NFL, college and high school.
Are high school, college and NFL football fields the same size?
The outline is identical at all three levels. What changes is the marking inside it: the hash marks are 18 ft 6 in apart in the NFL, 40 ft apart in college and 53 ft 4 in apart in high school; NFL yard numbers sit 12 yd off the sideline versus 9 yd for college and high school; high-school goal posts are 23 ft 4 in wide against 18 ft 6 in; and the team area runs between the 32s in the NFL but the 25s elsewhere. The comparison table above lists each one.
How far apart are the hash marks on a football field?
NFL hash marks are 70 ft 9 in in from each sideline, which leaves 18 ft 6 in between them — the same width as the goal posts. College hash marks are 60 ft in from each sideline and 40 ft apart. High-school hash marks divide the 160-ft width into thirds, so they are 53 ft 4 in in from each sideline and 53 ft 4 in apart. Texas high schools are the exception and use the college spacing.
How big is a flag football field?
It depends on the format. NFL FLAG (5-on-5) plays on a field 30 yards wide and 70 yards long including two 10-yard end zones, with no-run zones 5 yards in front of each goal line and either side of midfield. The 7-on-7 game used by NFHS girls' flag football, the FHSAA and NIRSA is 40 yards wide and 80 yards between the goal lines, plus 10-yard end zones, with a zone line every 20 yards.
How big is an 8-man football field?
Forty yards wide — 13⅓ yards narrower than an 11-man field — with 10-yard end zones. Most states keep the full 100 yards between the goal lines; the NFHS 8-player rules also allow an 80-yard field, and a few leagues use it. Six-man and nine-man football play on the same 40-yard width.
How big is a Canadian football field?
Bigger in every direction: 110 yards between the goal lines, 65 yards wide, with 20-yard end zones, for 150 yards overall. The goal posts stand on the goal line rather than the end line, the centre line is the 55, and the CFL moved its hash marks in from 24 to 28 yards off the sideline in 2022 — amateur Canadian football still uses 24.
Is a football field bigger than a soccer field?
Usually not. A regulation soccer pitch can be anywhere from 100 to 130 yards long and 50 to 100 yards wide, and the FIFA international standard is 110–120 by 70–80 yards — so most soccer fields are wider than a football field's 53⅓ yards and about as long. A football field fits inside a full-size soccer pitch, which is why the two often share a stadium.
What are the dimensions of a football field in meters?
109.73 m long including the end zones, 91.44 m between the goal lines, and 48.77 m wide. Each end zone is 9.14 m deep, and the crossbar is 3.05 m above the ground. The area is about 5,350 square metres.
How big are football goal posts?
The crossbar is 10 ft above the ground at every level. In the NFL and college the uprights are 18 ft 6 in apart; in high school they are 23 ft 4 in apart. NFL uprights rise 35 ft above the crossbar. At all three levels the posts stand centred on the end line, at the back of the end zone.

Measurements from NFL Rule 1, NCAA Rule 1-2, NFHS Rule 1-2 (11- and 8-player), the CFL rule book, and the NFL FLAG, NFHS girls’ flag, FHSAA and NIRSA flag rules. Updated through September 2026.
