Lacrosse Field Dimensions

Lacrosse is unusual: the men's and women's games are played on genuinely different fields, and since 2026 USA Lacrosse also publishes a unified field that carries both sets of lines. One measured sheet for each — men's, women's, unified and the small-sided youth field — read straight from the governing body's own diagrams.

Measured · one sheet per field

Five sheets, four fields.

Men's in both orientations, then women's, unified and youth. Every sheet names its rule book and, where the rules give a range, says what size it is drawn at.

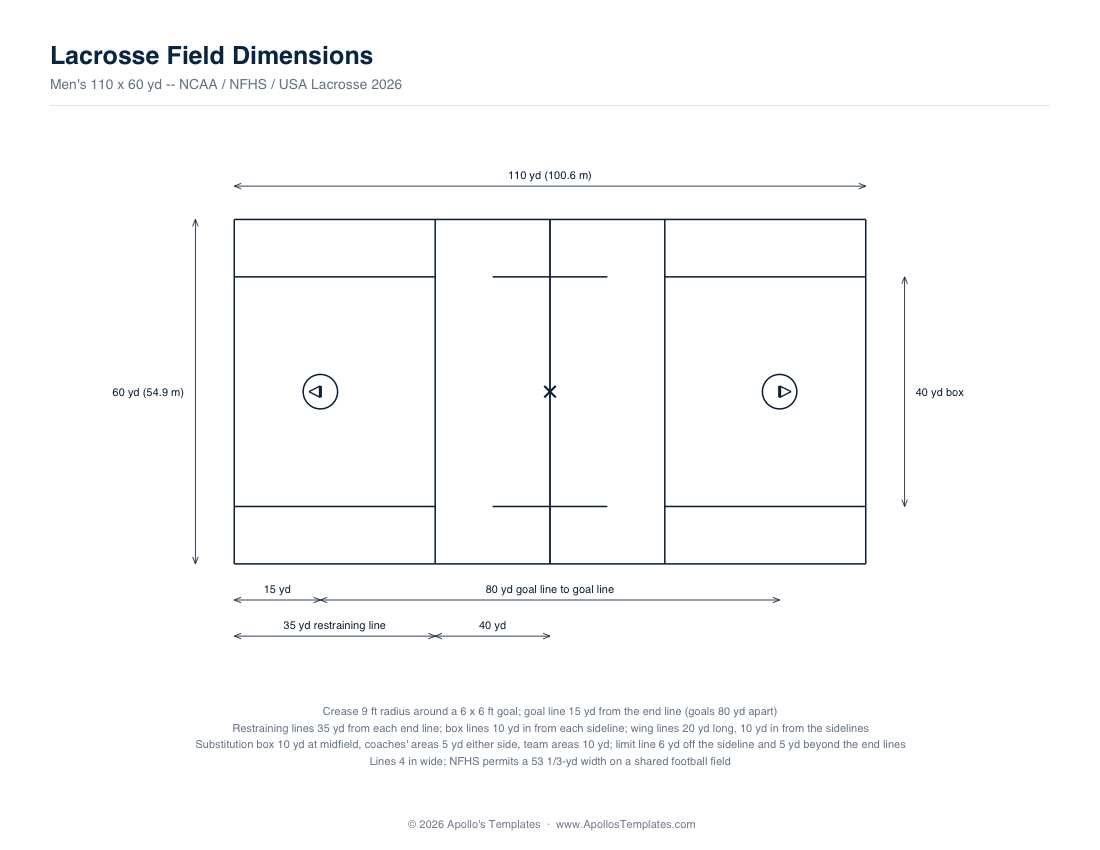

Measured men's lacrosse field diagram drawn wide, labeled 110 yd long and 60 yd wide with the goal line 15 yd from the end line, restraining lines 35 yd from each end and a 40-yd-wide box
NewPDF

Men's Field — Landscape

The NCAA / NFHS / USA Lacrosse field: 110 × 60 yd, goals 15 yd in and 80 yd apart, restraining lines 35 yd from each end, the 40-yd box, 20-yd wing lines and the 9-ft crease. Every number on the sheet.
Download PDF
Measured men's lacrosse field diagram in upright orientation, 110 by 60 yd, with restraining lines, box lines and creases labeled
PDF

Men's Field — Portrait

Same measurements upright, the way a lining crew's clipboard reads. Fits a binder sleeve.
Download PDF

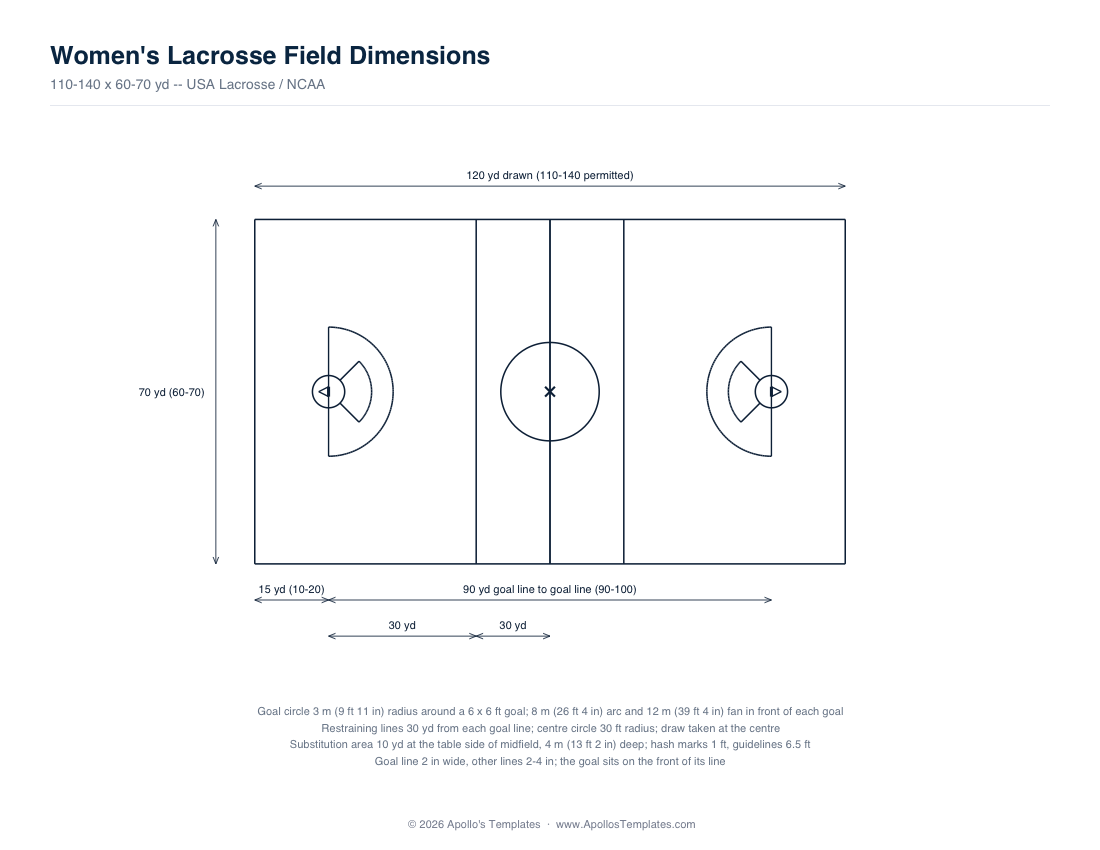

Measured women's lacrosse field diagram labeled 120 by 70 yd with goal lines 15 yd in, restraining lines 30 yd from each goal line, a 30-ft centre circle, 3 m goal circles and the 8 m arc and 12 m fan
PDF

Women's Field

Drawn at 120 × 70 yd inside the permitted 110–140 × 60–70: goal lines 10–20 yd in, restraining lines 30 yd off each goal line, 30-ft centre circle, 3 m goal circle, and the 8 m arc and 12 m fan that make it a different sport to line.
Download PDF

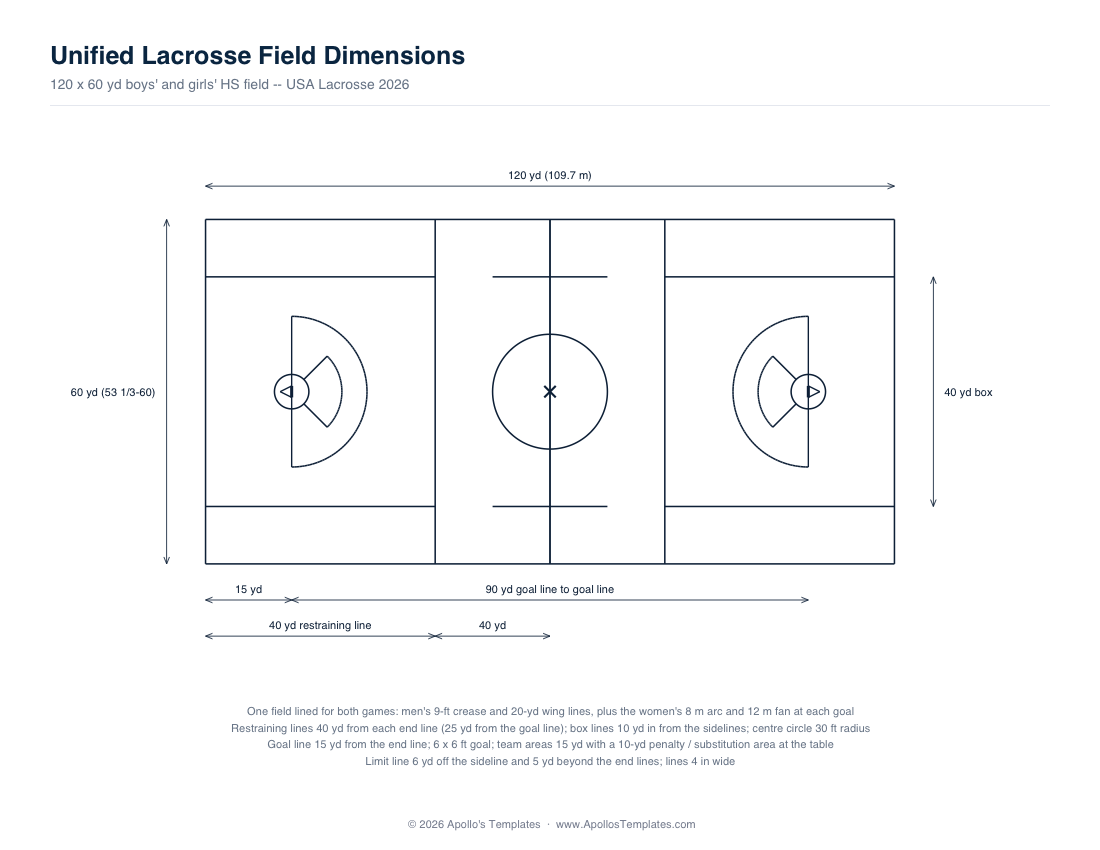

Measured USA Lacrosse unified boys' and girls' high school field labeled 120 by 60 yd with restraining lines 40 yd from each end, men's creases and wing lines plus the women's 8 m arc and 12 m fan
PDF

Unified Boys' & Girls' HS Field (2026)

USA Lacrosse's one-field answer for schools that host both games: 120 × 53⅓–60 yd, restraining lines 40 yd from each end, the men's crease, box and wing lines drawn together with the women's arc and fan.
Download PDF

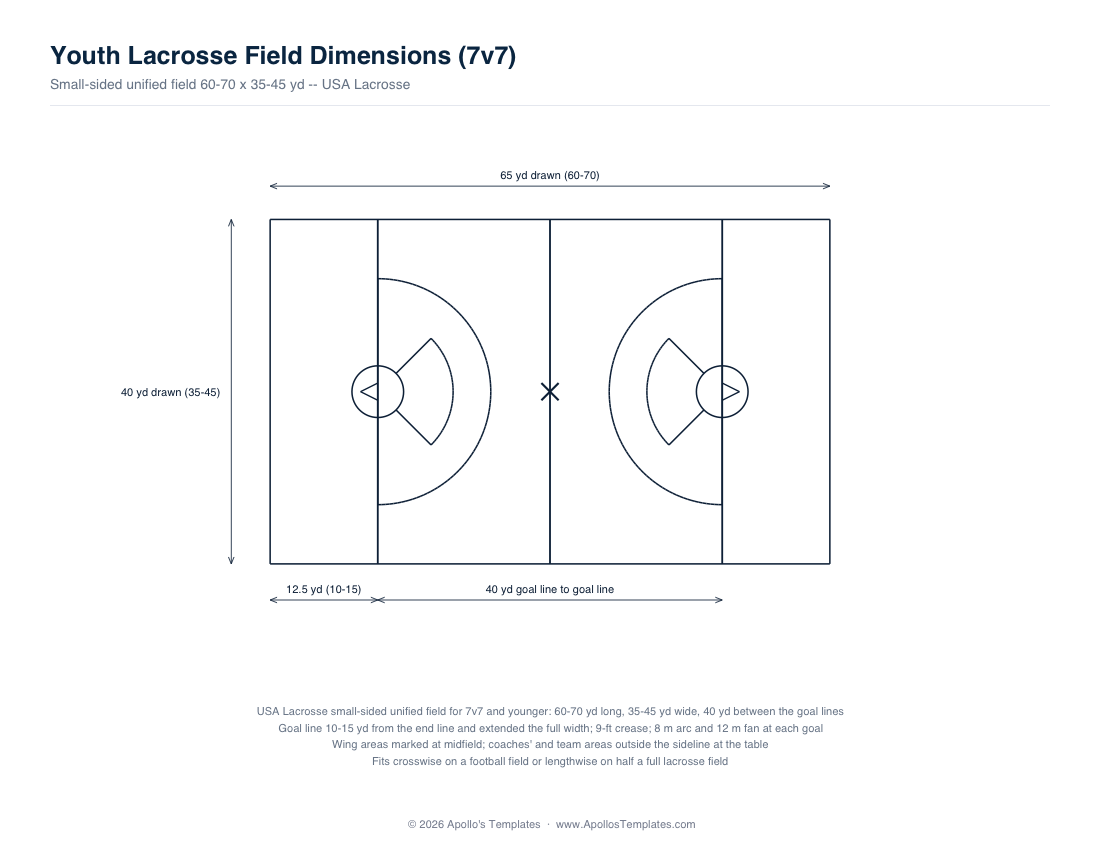

Measured small-sided youth lacrosse field labeled 65 by 40 yd, drawn within the 60-70 by 35-45 yd range, goal lines 10-15 yd in and extended full width, 40 yd between the goal lines
PDF

Small-Sided Youth Field (7v7)

The USA Lacrosse small-sided unified field: 60–70 × 35–45 yd with 40 yd between goal lines that run the full width. Drawn at 65 × 40. Two fit crosswise on a full field.
Download PDF

Men’s vs. women’s vs. unified

Same goal, same crease radius on two of the three, and almost nothing else in common.

MeasurementMen’sWomen’sUnified (2026)
Field size110 × 60 yd110–140 × 60–70 yd120 × 53⅓–60 yd
Goal line from end line15 yd10–20 yd15 yd
Goal line to goal line80 yd90–100 yd90 yd
Restraining lines35 yd from each end (20 from goal line)30 yd from each goal line40 yd from each end (25 from goal line)
Crease / goal circle9 ft radius3 m (9 ft 11 in) radius9 ft radius
Arcs—8 m arc + 12 m fan8 m arc + 12 m fan
CentreX30-ft circle30-ft circle
Wing lines / box20-yd wings, 40-yd box—20-yd wings, 40-yd box
Goal6 × 6 ft6 × 6 ft6 × 6 ft

From USA Lacrosse’s 2026 men’s, women’s and unified field diagrams. The NFHS permits a 53⅓-yd men’s width on a shared football field.

Why the goals sit inside the field

The first thing that surprises people lining a lacrosse field is that the goal is not on the end line. It sits 15 yards in — 10 to 20 in the women’s game — leaving a strip of live field behind it, and the whole attack is built around that space: the men’s “X” attackman sets up behind the goal, and the women’s first home works the same ground. The restraining lines then carve each end into a zone where a set number of players from each side must stay.

That is also why the unified field is 120 yards rather than 110: the extra ten yards give both games the room behind the goal they expect while keeping one set of restraining lines, 40 yards from each end, that both rule books accept.

Drawing plays, not lining a field?
Blank lacrosse field diagrams
Men’s and women’s blanks, a half-field settled-offense sheet, and a builder that places the 10 or the 12 with your players’ names and logo.
Open
Sharing the field?
Football field dimensions
120 × 53⅓ yd — the gridiron a 53⅓-wide lacrosse field is squeezed onto.
Open
What are the dimensions of a lacrosse field?
A men's field is 110 yards long by 60 yards wide. The goals sit 15 yards in from each end line, 80 yards apart, inside a 9-ft-radius crease, and restraining lines cross the field 35 yards from each end to make the two 40-yd-wide defensive and goal areas. The same field is used by the NCAA, the NFHS and USA Lacrosse; the NFHS allows a 53⅓-yd width where the field shares a football gridiron.
How is the women's lacrosse field different from the men's?
Dramatically. The women's field is longer and wider — 110 to 140 yards by 60 to 70 — with 90 to 100 yards between the goal lines instead of 80. It has no box or wing lines; instead each goal carries a 3 m goal circle, an 8-metre arc and a 12-metre fan, the restraining lines sit 30 yards off each goal line, and the draw is taken in a 30-ft centre circle. Line one for the other and neither game can be played properly, which is why USA Lacrosse published a unified field.
What is the unified lacrosse field?
USA Lacrosse's 2026 shared field for high schools that host both boys' and girls' lacrosse on one surface. It is 120 yards long and 53⅓ to 60 wide, with the goal lines 15 yards in, restraining lines 40 yards from each end, the men's 9-ft crease, box and wing lines, and the women's 8 m arc and 12 m fan painted around the same goals. One set of lines, both rule books satisfied.
What are high school lacrosse field dimensions?
Boys play on the men's 110 × 60 yd field under NFHS rules, with a 53⅓-yd width permitted on a shared football field. Girls play on the women's field — 110–140 × 60–70 yd — under NFHS girls' rules, which follow the USA Lacrosse markings. Schools that field both increasingly line the unified 120 × 60 field instead.
How big is a youth or 7v7 lacrosse field?
USA Lacrosse's small-sided unified field is 60 to 70 yards long and 35 to 45 wide, with the goals 10 to 15 yards in and 40 yards between the goal lines, which run the full width. It carries the 9-ft crease and the girls' arc and fan so both games can use it. Two of them fit crosswise on a full field, one on each half.
Is a lacrosse field bigger than a football field?
Longer, not wider. A men's lacrosse field is 110 yards end line to end line against football's 120 including the end zones, but it is 60 yards wide to football's 53⅓ — which is why the NFHS lets schools shrink lacrosse to 53⅓ on a shared field. A women's field at up to 140 × 70 yards is larger than a football field in every direction.
How big is a box lacrosse floor?
Box lacrosse is played on a hockey rink with the ice out — 180 to 200 ft long and 80 to 90 ft wide, so 200 × 85 ft in an NHL-size arena. The goal is a 4 × 4 ft box (4 ft 9 in wide in the NLL) inside a crease of 9 ft to 9 ft 3 in radius. Indoor field lacrosse on turf is a different thing again and uses whatever the facility has.
How long is a lacrosse field in feet and metres?
The men's field is 330 ft long and 180 ft wide — 100.6 m by 54.9 m — with the goals 240 ft apart. A women's field drawn at 120 × 70 yards is 360 × 210 ft, or 109.7 × 64 m.

Measurements from USA Lacrosse’s 2026 Men’s Field Diagram, Women’s Field Diagram, Lining the Field (Unified) and Small-Sided Unified Field Diagram. Updated through September 2026.
